Garuda Maintenance Facilities AeroAsia(Butterfly Type)

Posted by archv3ntura at 19:19


Hangar Design Type
Butterfly Conventional
Flexible hangar movement
~No disturbance mobility
  in and out
~Easy evacuation for emergen		 Limited hangar movement
~Disturbance mobility in and out
~Difficulty in evacuation for emergenc
Accommodate two phase hangar construction and development
~Flexibility of financing scheme
~Faster hangar operation
  (end of 2010) 		One phase hangar construction and development
~In-flexibility of financing   scheme
~Late hangar operation(end of 2010)
Total investment(US$ 59.1M) Total investment(US$ 53.9M)
Dedicated slot and store No available
  • Butterfly design type is preffered than conventional one

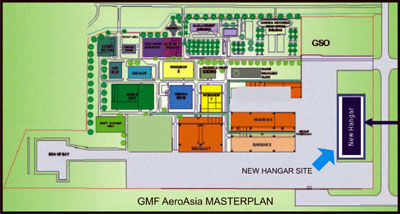

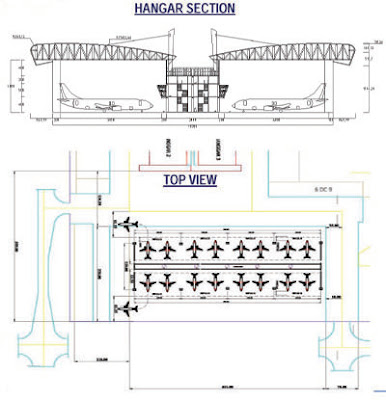

Conceptual Design-Butterfly Type
Hangar Requirement
Hangar-8 bay,16 lines(2x60mx400m)
Office 2 floor
Roof-Finis Water proof
Ground - Epoxy(thickness=1500 micron)
Electrical 2000KVA
Mechanical:
  • Fire fighting system
  • Air conditional
  • Hoist crane(3.5T)
  • Pneumatic system
  • Water supply
Ofice Equipment
Aircraft Docking System
Back Up Shop
  • Cabin
  • Composite
  • Sheet metal

Conceptual Design-Butterfly Type

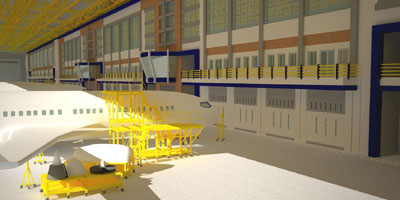

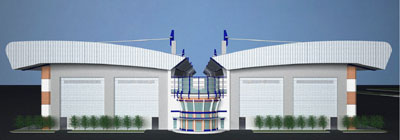

Hangar 3d modeling











Design by ~♥ж۩-Aяch_v3иturέ™-۩ж♥~

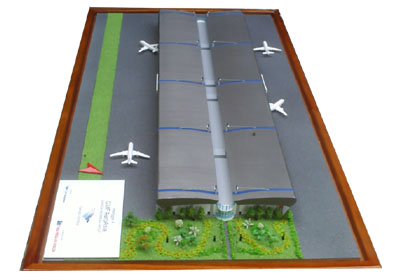

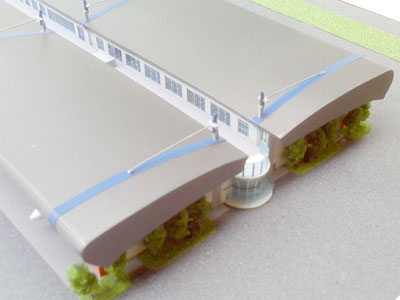

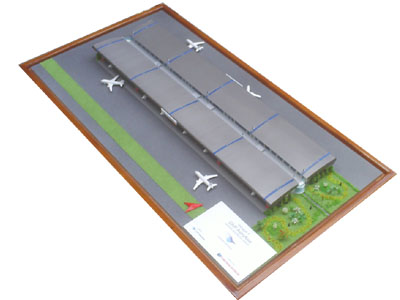

Hangar Maket/Miniatur scale 1:500

Hangar Animation
